1993 25' Regal Autofill

04-25-2026, 12:20 PM

As a mechanic and 12 volt guy I would like to learn how the Autofill system is to function and if any one makes replacement parts as I have a leak in the housing at the city water hookup or upgrades for my 1993 25' Regal

04-25-2026, 12:20 PM

Eliminatethis

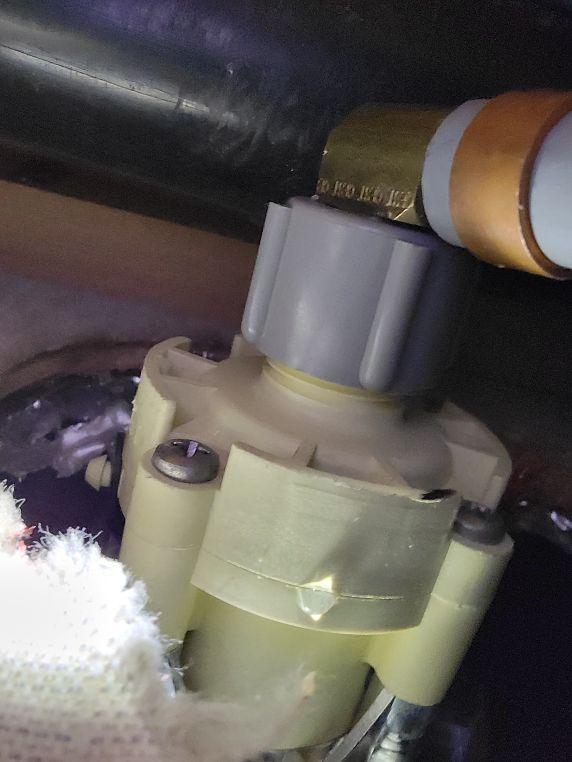

This is the location of the leak

04-25-2026, 02:22 PM

billyt53

I can help you with that….The part with the leak appears to be a filter screen, I can’t tell for sure in that photo. Whatever it is, I would remove the four screws, unscrew the two halves from the threaded connection and using a sheet of 240 grit or finer sandpaper on a sheet of glass and make figure 8’s with it until the surface is uniform again. The screen, if that’s what it is, probably has a seal attached to the circumference so evening the flanges would also tighten that seal too. A second option, one that we employ on our Barth would be to remove the screen device and connect the incoming city water direct to whatever is on the other side of the leaky device and install a whole house water filter behind the city water connection.

The AutoFill system is controlled by the KIB monitor panel which supplies power to the AutoFill valve. There is a dedicated water level probe at highest level of the water tank, when the water level reaches that probe a panel alarm will sound and power is cut to the AutoFill valve.

I hope that explains your question.
Billy T

Billy & Helen Thibodeaux

Retired from Billy Thibodeaux's Premiere RV, Inc. Scott, LA 70583 I-10 Exit 97-Our Son now owns it!
The Farm is near Duson, LA I-10 Exit 92 then N 1 mile on right
Three Full 50 Amp RV Hookups !
billynhelen@me.com
Data Tag: 9404-3908-36XI-2C
1994 Sovereign 36' Widebody on Spartan IC (Mountain Master Lite) Chassis.
Powered by a Cummins ISL9-450
Onan 8,000 Quiet Diesel Genset
Toad: 2018 Chevy Colorado ZR2 Diesel

04-25-2026, 02:41 PM

Eliminatethis

quote:
Originally posted by billyt53:
I can help you with that….The part with the leak appears to be a filter screen, I can’t tell for sure in that photo. Whatever it is, I would remove the four screws, unscrew the two halves from the threaded connection and using a sheet of 240 grit or finer sandpaper on a sheet of glass and make figure 8’s with it until the surface is uniform again. The screen, if that’s what it is, probably has a seal attached to the circumference so evening the flanges would also tighten that seal too. A second option, one that we employ on our Barth would be to remove the screen device and connect the incoming city water direct to whatever is on the other side of the leaky device and install a whole house water filter behind the city water connection.

The AutoFill system is controlled by the KIB monitor panel which supplies power to the AutoFill valve. There is a dedicated water level probe at highest level of the water tank, when the water level reaches that probe a panel alarm will sound and power is cut to the AutoFill valve.

I hope that explains your question.
Billy T

Billy are any of the valves by the pump supposed to be switched when going from fresh fill to city?

04-25-2026, 05:03 PM

billyt53

No, but I didn’t notice in your photo if your’s is equipped but our coach has a manual valve that bypasses the AutoFill valve in the event of a valve failure since that’s the only way to get water in the tank.

I did forget to mention that the fresh water pump needs to be switched off when using the AutoFill function, or else it will draw water from the tank and pump it right back into the tank through the AutoFill line.

04-25-2026, 05:09 PM

billyt53

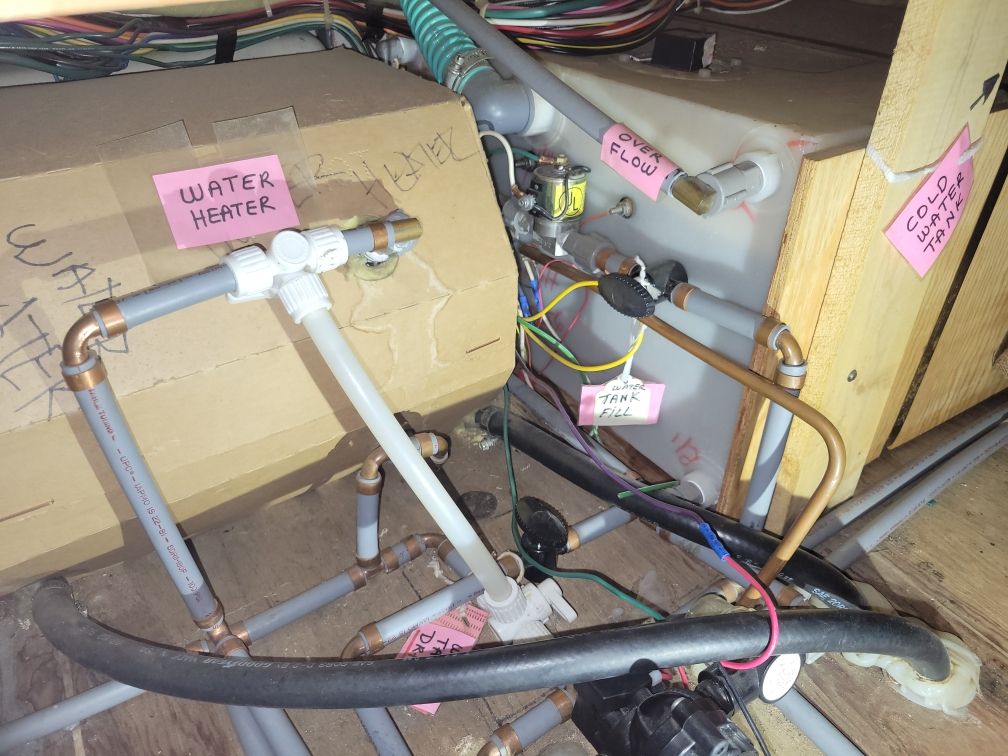

I see now that you have a gravity fill so you will not have a bypass valve.

04-25-2026, 06:25 PM

Eliminatethis

quote:
Originally posted by Eliminatethis:
This is the location of the leak

Found a new ShurFo replacement 183-029 in chrome on Amazon for $45 now onto the sol. valve.

04-25-2026, 06:30 PM

Eliminatethis

quote:
Originally posted by billyt53:
I see now that you have a gravity fill so you will not have a bypass valve.

So the Auto fill when switched on only allows water from the city fill connection to enter but when switched off it blocks it?

04-25-2026, 07:44 PM

billyt53

That is correct. Make sure you test all that before making it gospel, we do have a different model…

04-26-2026, 07:51 AM

Eliminatethis

quote:
Originally posted by billyt53:
That is correct. Make sure you test all that before making it gospel, we do have a different model…

Thanks will test after the new ShurFlo city water hookup gets here tomorrow. Any chance you know the type of Butyl sealant is used used on the city water hookup flange to aluminum surface? The product that was there was still soft after years.

04-26-2026, 12:12 PM

billyt53

Any butyl tape will do.

04-26-2026, 12:54 PM

billyt53

Now a question for you, how do you post pictures here?

04-26-2026, 03:55 PM

Duane88

Billy you have been a member since 2005 and never posted a photo!!!

open reply to topic just like a post, under the box in blue is a link says attachment:. click and a box will go around the "choose a file" below the link. click it, this opens your computer file folders, in the file box select the folder the photo is located. select a picture, click open, next to the choose file box, you will see the link for your photo, finish your post, post now! look at the photo

should say you cannot post pictures in the Barth's for sale forum and can only post one photo in a post
