Monarch fuses
 Login now/Join our community

Official Barth Junkie
Supporting Member of Barthmobile.com 1/24
Picture of Steve VW
posted
I have not been able to find a fuse block diagram that shows which fuses are there. The fuse block is mounted vertically on the forward side of the firewall. There are also several other individual inline fuses there.

There are also some smaller fuse blocks in the rear under the bed.

Does anyone have a diagram that indicates which circuits and what size fuses are needed? I would like to make that available here on the site.

I will try to trace some of them soon and report.


Posts: 5168 | Location: Kalkaska, MI | Member Since: 02-04-2011Reply With QuoteReport This Post
Supporting Member of Barthmobile.com 3/22
Picture of Dana
posted Hide Post

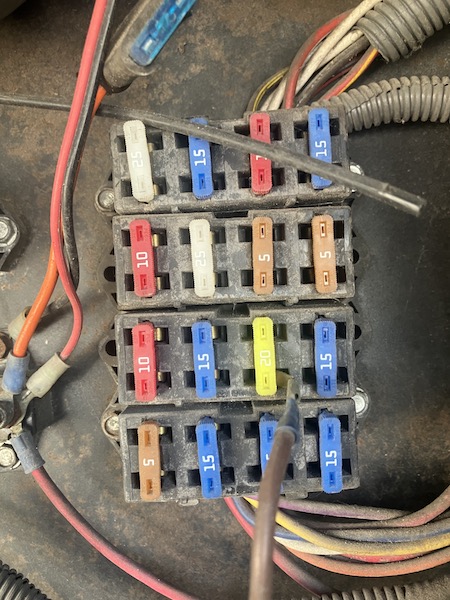

Steve here is the other fuse blocks under the bed. I’ll see what I can find on the front ones. I can maybe read the tape on each wire. It will not have the fuse sizes.


Dana & Lynn
1997 38ft Monarch front entry
Spartan Mountain Master Chassis
Cummins 8.3 325hp
Allison MD-3060 6 speed
22.5 11R
Cummins Factory Exhaust Brake
8000 watt Quiet Diesel Generator
9608-M0022-38MI-4C
Christened Midnight

1972 22ft
Christened Camp Barth



Posts: 1384 | Location: Waseca, Minnesota | Member Since: 12-09-2010Reply With QuoteReport This Post
Supporting Member of Barthmobile.com 3/22
Picture of Dana
posted Hide Post

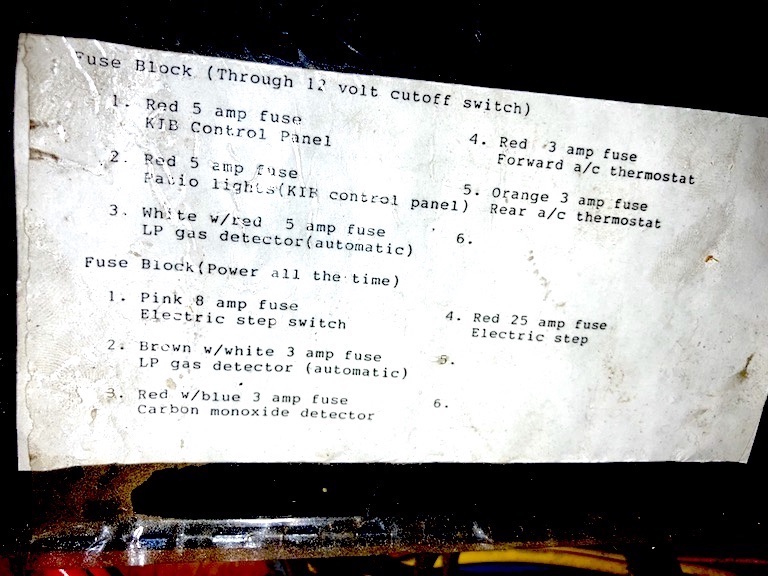

The listing


Dana & Lynn
1997 38ft Monarch front entry
Spartan Mountain Master Chassis
Cummins 8.3 325hp
Allison MD-3060 6 speed
22.5 11R
Cummins Factory Exhaust Brake
8000 watt Quiet Diesel Generator
9608-M0022-38MI-4C
Christened Midnight

1972 22ft
Christened Camp Barth



Posts: 1384 | Location: Waseca, Minnesota | Member Since: 12-09-2010Reply With QuoteReport This Post
Official Barth Junkie
Supporting Member of Barthmobile.com 1/24
Picture of Steve VW
posted Hide Post
Mine are similar under the bed.


Posts: 5168 | Location: Kalkaska, MI | Member Since: 02-04-2011Reply With QuoteReport This Post
Official Barth Junkie
Supporting Member of Barthmobile.com 1/24
Picture of Steve VW
posted Hide Post
Top set:


Posts: 5168 | Location: Kalkaska, MI | Member Since: 02-04-2011Reply With QuoteReport This Post
Official Barth Junkie
Supporting Member of Barthmobile.com 1/24
Picture of Steve VW
posted Hide Post
Bottom set. (The top left 3A fuse was used for the step control, but my current step doesn't use it. I refused to 15 amp for a 12V 15A feed to the step area.)


Posts: 5168 | Location: Kalkaska, MI | Member Since: 02-04-2011Reply With QuoteReport This Post
Supporting Member of Barthmobile.com 3/22
Picture of Dana
posted Hide Post
quote:
Originally posted by Steve VW:
Bottom set. (The top left 3A fuse was used for the step control, but my current step doesn't use it. I refused to 15 amp for a 12V 15A feed to the step area.)


Interesting your step had 3 amp and mine lists 8 amp


Dana & Lynn
1997 38ft Monarch front entry
Spartan Mountain Master Chassis
Cummins 8.3 325hp
Allison MD-3060 6 speed
22.5 11R
Cummins Factory Exhaust Brake
8000 watt Quiet Diesel Generator
9608-M0022-38MI-4C
Christened Midnight

1972 22ft
Christened Camp Barth



Posts: 1384 | Location: Waseca, Minnesota | Member Since: 12-09-2010Reply With QuoteReport This Post
Official Barth Junkie
Supporting Member of Barthmobile.com 1/24
Picture of Steve VW
posted Hide Post
What is the 25A white wire on terminal 6? (top block)


9708-M0037-37MM-01
"98" Monarch 37
Spartan MM, 6 spd Allison
Cummins 8.3 325+ hp

Posts: 5168 | Location: Kalkaska, MI | Member Since: 02-04-2011Reply With QuoteReport This Post
Supporting Member of Barthmobile.com 3/22
Picture of Dana
posted Hide Post
quote:
Originally posted by Steve VW:
What is the 25A white wire on terminal 6? (top block)


That’s a goods question? It goes forward with the big bundle internally along the exterior wall. I’ll have to investigate. Probably have to put the tracer on it. I pulled it and saw nothing off. That’s a heavy gauge wire and fuse. Seeing it’s not on the menu I wonder? The wire is in the middle of the bundle. Must be from Barth?

Any guesses? What else would pull that much amps from there?


Dana & Lynn
1997 38ft Monarch front entry
Spartan Mountain Master Chassis
Cummins 8.3 325hp
Allison MD-3060 6 speed
22.5 11R
Cummins Factory Exhaust Brake
8000 watt Quiet Diesel Generator
9608-M0022-38MI-4C
Christened Midnight

1972 22ft
Christened Camp Barth

Posts: 1384 | Location: Waseca, Minnesota | Member Since: 12-09-2010Reply With QuoteReport This Post
Supporting Member of Barthmobile.com 03/22
posted Hide Post
Refrigerator? 3 way refers do draw a lot from 12VDC when run off DC.


Ed
94 30' Breakaway #3864
30-BS-6B side entry
New Cummins 5.9L, 375+ HP
Allison 6 speed
Spartan chassis
K9DVC
Tankless water heater

Posts: 2177 | Location: Los Gatos, CA | Member Since: 12-08-2005Reply With QuoteReport This Post
Official Barth Junkie
Supporting Member of Barthmobile.com 1/24
Picture of Steve VW
posted Hide Post
That is very likely the answer. The refrigerator heating elements are around 250 watts and that would be consistent with a 25 amp supply. hmm


9708-M0037-37MM-01
"98" Monarch 37
Spartan MM, 6 spd Allison
Cummins 8.3 325+ hp

Posts: 5168 | Location: Kalkaska, MI | Member Since: 02-04-2011Reply With QuoteReport This Post
Supporting Member of Barthmobile.com 4/08
posted Hide Post
Mine at least draws less on 12vdc than 120. Mine only operates with the ignition key on. Or shut off the gas on the hwy.


'92 Barth Breakaway - 30'
5.9 Cummins (6B) 300+ HP
2000 Allison
Front entrance

Posts: 1185 | Location: Minneapolis/Yuma | Member Since: 08-17-2006Reply With QuoteReport This Post
