Monarch tank bay floor repair
 Login now/Join our community

Official Barth Junkie
Supporting Member of Barthmobile.com 1/24
Picture of Steve VW
posted
The tank bay of my coach was so corroded I was afraid to fill the fresh water tank. The tank sits on the floor and holds up to 82 gallons, around 650 lbs. The floor was beginning to sag.

I decided it was time to repair the floor. I removed the tank and was surprised to see how bad it was.


Posts: 5159 | Location: Kalkaska, MI | Member Since: 02-04-2011Reply With QuoteReport This Post
Official Barth Junkie
Supporting Member of Barthmobile.com 1/24
Picture of Steve VW
posted Hide Post
After the MN GTG, I cut out most of the damaged floor. Not much left to hang a new floor on. hmm


Posts: 5159 | Location: Kalkaska, MI | Member Since: 02-04-2011Reply With QuoteReport This Post
Official Barth Junkie
Supporting Member of Barthmobile.com 1/24
Picture of Steve VW
posted Hide Post
I had been planning to just put in a temp plywood floor for the GTG next week. I had forgotten there is no water at the sites! confusion
So, I not only needed a floor I needed a load bearing floor!

I decided the first thing needed was to reinforce the outside corners with angle steel. I used a 16ft 2 x 3 with the two inch side vertical. The 2 inch side fits below the door gasket nicely. The 3 inch side becomes the floor flange.

Since some of the metal is so corroded, I decided to bolt the steel in rather than try to weld. I will ultimately remove the steel and bed it in epoxy to seal and bond it.


Posts: 5159 | Location: Kalkaska, MI | Member Since: 02-04-2011Reply With QuoteReport This Post
Official Barth Junkie
Supporting Member of Barthmobile.com 1/24
Picture of Steve VW
posted Hide Post
Another 16ft, wheel to wheel, on the driver side


Posts: 5159 | Location: Kalkaska, MI | Member Since: 02-04-2011Reply With QuoteReport This Post
Official Barth Junkie
Supporting Member of Barthmobile.com 1/24
Picture of Steve VW
posted Hide Post
I installed two more transverse angles to span the front and rear corners of the bay. With that I will have sturdy flange all around for the plywood floor and tank.


Posts: 5159 | Location: Kalkaska, MI | Member Since: 02-04-2011Reply With QuoteReport This Post
Supporting Member of Barthmobile.com 8/19
posted Hide Post
It is certainly convenient that you have your water tank in a bay. Supporting the extra weight of water is important. It appears you have thought this project through. Thumbs Up You can be ready for real off grid camping. Thumbs Up

Posts: 2478 | Location: Ohio | Member Since: 07-29-2012Reply With QuoteReport This Post
Official Barth Junkie
Supporting Member of Barthmobile.com 1/24
Picture of Steve VW
posted Hide Post
A few more details and ready for plywood floor, then replace the water tank.


Posts: 5159 | Location: Kalkaska, MI | Member Since: 02-04-2011Reply With QuoteReport This Post
Official Barth Junkie
Supporting Member of Barthmobile.com 1/24
Picture of Steve VW
posted Hide Post

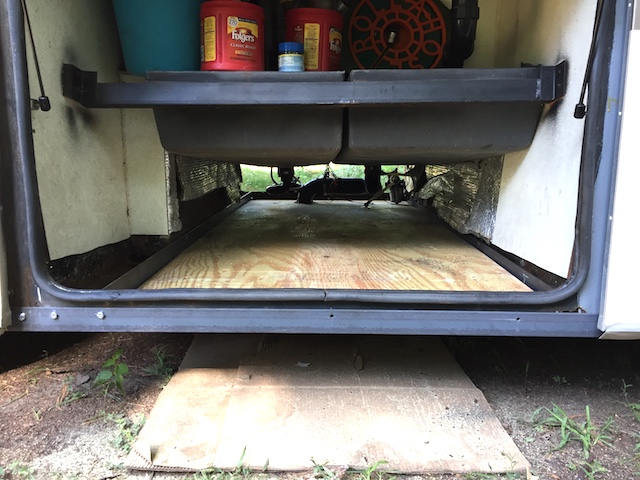

With help from my fearless assistant Dana we now have a floor


9708-M0037-37MM-01
"98" Monarch 37
Spartan MM, 6 spd Allison
Cummins 8.3 325+ hp



Posts: 5159 | Location: Kalkaska, MI | Member Since: 02-04-2011Reply With QuoteReport This Post
Official Barth Junkie
Supporting Member of Barthmobile.com 1/24
Picture of Steve VW
posted Hide Post
Now we can slide the tank in and hook up the water lines...


Posts: 5159 | Location: Kalkaska, MI | Member Since: 02-04-2011Reply With QuoteReport This Post
Official Barth Junkie
Supporting Member of Barthmobile.com 1/24
Picture of Steve VW
posted Hide Post
Tank is back in and filling!


Posts: 5159 | Location: Kalkaska, MI | Member Since: 02-04-2011Reply With QuoteReport This Post
Official Barth Junkie
Supporting Member of Barthmobile.com 1/24
Picture of Steve VW
posted Hide Post
Lines are connected, pump works. Just a few tank sensor wires to connect.

Eventually I will epoxy all the steel and wood.


9708-M0037-37MM-01
"98" Monarch 37
Spartan MM, 6 spd Allison
Cummins 8.3 325+ hp



Posts: 5159 | Location: Kalkaska, MI | Member Since: 02-04-2011Reply With QuoteReport This Post
