01-31-2021, 01:35 PM
Steve VW
Monarch step cover motor
My Monarch has a sliding cover for the steps. It has never worked. Finally got around to looking at it.

The cover retracts under the seat when not used. It is then inside the top of the wheel well, behind a sheet metal panel. When being used it slides forward to cover the steps. It is supposed to be moved by an electric motor driven rack and pinion system.

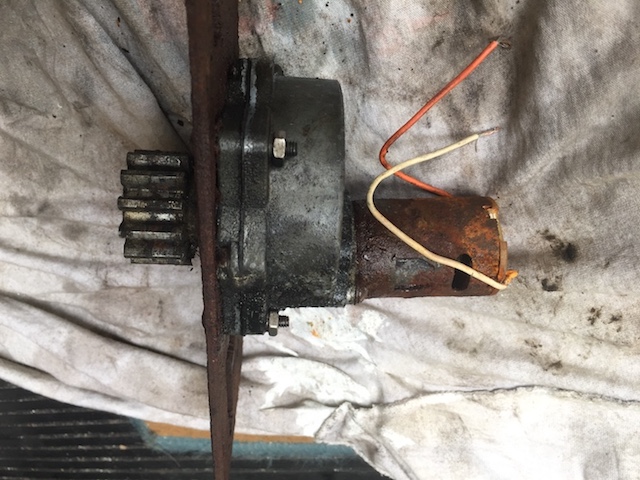

I removed the motor and pinion gearbox. The cover slides were stiff but when lubed the cover now slides back and forth.

The motor is badly corroded and not repairable. Looks like road slop got up there. The gear box seems OK so far. It can be disassembled and lubed. I have not found any kind of information on the assembly....

Does anyone recognize this, or have replaced one? I have not found any discussion on it yet. Thanks

At least now I can use the cover manually. If and when I find a motor I can install it again.




9708-M0037-37MM-01
"98" Monarch 37
Spartan MM, 6 spd Allison
Cummins 8.3 325+ hp
01-31-2021, 02:26 PM
Dana
I knew it would gnaw at your mind until you couldn’t stand it anymore. Eagerly awaiting what you find out as mine is the same.


Dana & Lynn
1997 38ft Monarch front entry
Spartan Mountain Master Chassis
Cummins 8.3 325hp
Allison MD-3060 6 speed
22.5 11R
Cummins Factory Exhaust Brake
8000 watt Quiet Diesel Generator
9608-M0022-38MI-4C
Christened Midnight

1972 22ft
Christened Camp Barth
01-31-2021, 05:33 PM
Gary Carter
You wouldn't be lucky enough to have a label on the motor. Anyway the motor should be available somewhere. It looks familiar. About 3" x 1.5" is that correct?


'92 Barth Breakaway - 30'
5.9 Cummins (6B) 300+ HP
2000 Allison
Front entrance
01-31-2021, 06:13 PM
kenny j
Hey Steve, I wanted to take a guess. How about a 1997 Cadillac electric window motor and gearbox assy.
