Wiring Diagram Of Step
 Login now/Join our community

Picture of Paul And Jaime
posted

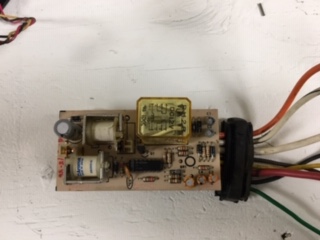

Hello all. Does anyone have a wiring diagram of all the step wiring on a 1984 Royale? I removed my step this weekend because of damage wires where they going the electrical box on the step. I am just curious as to the theory of operation on these. I have two small door switches on the hinge side of the frame and I assume one if for step operation and the other a light maybe? Here is a couple of pictures of the controller. Its interesting to me it was repaired in 1986.


Posts: 28 | Location: Ky | Member Since: 10-20-2020Reply With QuoteReport This Post
Picture of Paul And Jaime
posted Hide Post
Here is the other PIC. The Two wires headed off on the left plug into the step motor. (Red, White with black strip) The large white and the large red come from the coach battery. The green with the loop is a case ground and the black with the crimp connector is I assume a light wire but was not hooked to anything. My step light is missing all together. The last two wires, a yellow and a black ( smaller of the bunch ) must come form the door switch. I had to remove the step because the loom of wires was cut off right where it goes into the box on the step, so I had to pull the pin out and then push the step out by hand to access the bolts that held it on.

The controller seems to work on my bench ( well at least the relays all work ) But would love some insight on operation. Thanks


Posts: 28 | Location: Ky | Member Since: 10-20-2020Reply With QuoteReport This Post
Supporting Member of Barthmobile.com 7/17
Picture of Doorman
posted Hide Post
See if this will help you kwikee step troubleshooting .


1986 31' Regal -1976 Class C
454/T400 P30 -350/T400 G30
twin cntr beds - 21' rear bath

Posts: 934 | Location: Dayton, Ohio | Member Since: 09-27-2009Reply With QuoteReport This Post
Picture of Paul And Jaime
posted Hide Post
quote:
Originally posted by Doorman:
See if this will help you kwikee step troubleshooting .


Nice that will help a lot. Thank you very much

Posts: 28 | Location: Ky | Member Since: 10-20-2020Reply With QuoteReport This Post
Picture of Doug Smiley
posted Hide Post

Posts: 2953 | Location: Nova Scotia | Member Since: 12-08-2006Reply With QuoteReport This Post
