It's been really slow here on the site lately, but I have been busy with the coach work!

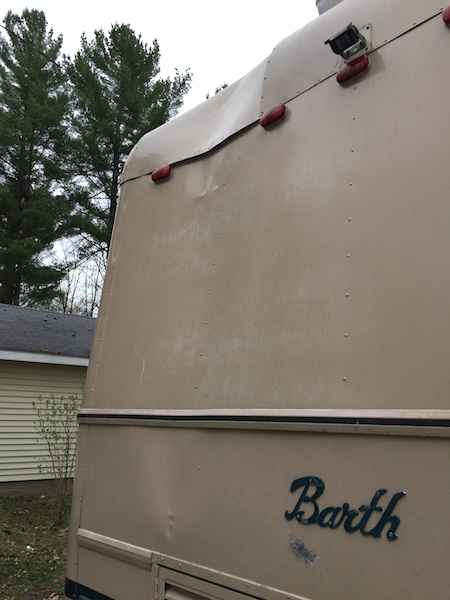

On my way home from Florida this spring I stopped at a park in Kentucky. The site was narrow, angled, and dark. For the first time in 11 years and 75,000 miles I managed to hit an invisible doppelganger tree (that's my story) as I backed in.

Another angle:

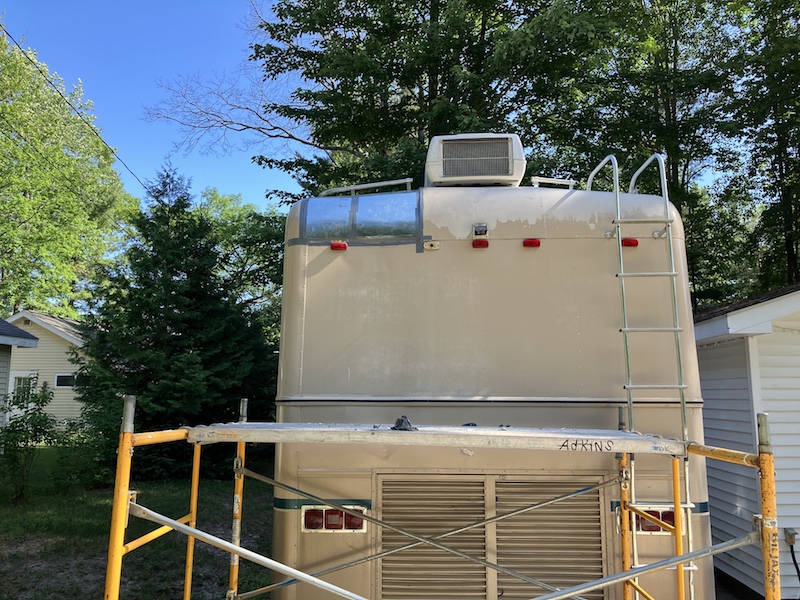

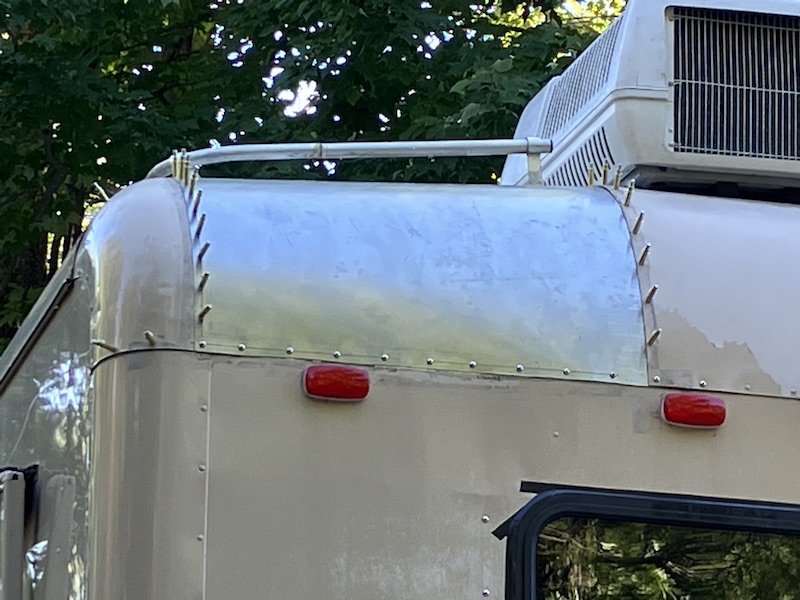

When I got home I set up a scaffold, drilled out the old rivets, and installed a temporary tin patch

Quick fix for now

The dent repair provoked several related projects. I have been wanting to insulate the bedroom walls and install a rear window for some time. Also the ladder was in bad shape and was pulling loose from the coach.

In the process of exposing the rear wall I was able to cut out the bent ribs, straighten the wall, and install wooden sisters to brace the wall. At the same time, I installed a window and foam insulation.

see here: https://www.barthmobile.com/eve...993991797#9993991797

I removed the bent belt line trim and got it straight. I have a good telescoping ladder so I will not miss the rear ladder.

I had some stainless steel that was salvaged from a commercial kitchen. I decided to cut my final patch from that.

I got the patch fitted in place. Stainless screws top and bottom rows and Cleco clamps on the curved sides.

I will remove it to caulk all the seam areas, then reinstall with screws and blind rivets.

I straightened the belt line trim with a rubber mallet and reattached with screws.

Once I finish the interior I will install the window permanently.

that is looking very nice. you are so lucky that you didn't dent the corner.
kenny

Considering the wall was pushed in, it turned out well. As you well know, you can stretch metal but you can't shrink it. After I straightened the wall, there are still a few small wrinkles but I can live with them. The lower edge of the patch still has a bit of ripple but I will shim it level from behind for final install.

I removed the patch and caulked all seams. Reassembled final time with screws and rivets. Ready to prime and paint!

A few more things inside and I will do the final install on the window.
